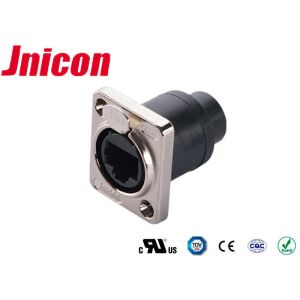

Panel Mount Waterproof RJ45 Ethernet Connector For Harsh Environments

Name: Panel Mount Waterproof RJ45 Ethernet Connector For Harsh Environments
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : RJ45 Waterproof connector

Certification : UL/TUV/CQC/CE

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C, T/T,Paypal,Western Union, L/C, D/A, D/P, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3-5 working days

Packaging Details : 1.Plastic bag; 2.Carton;3.As per customer's requirements

Signal transmission speed : Cate 5e

Certificate : UL/TUV/CE/ROHS

Name : RJ45 waterproof connector

Connecting mode : Plug unplug

Contact pin : Copper alloy(gold-plated)

Material : Zinc alloy

Contact Now

Jnicon RJ45 Female Socket Waterproof Ethernet Connector Rj45 Panel Mount

Description of CCTV Waterproof Connectors For signal

This CCTV waterproof connector RJ45 is a great choice for signal transmission in harsh environments,The 8P8C Rj45 waterproof connector could be widely used in the following application.

Application

LED Display
Lighting outdoor
Mechanical Automation
Electric vehicle charging
Communication control box

Technical Parameters
Connecting mode	Quick push pull Locking
Protection level	IP65
Cable specification	0.15mm2~0.2mm2 /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Current rating(A)	5A
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Prevent the combustion level	UL94-V0

Main Characteristic:

1. Compliance with D level or CAT 5e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e,data transfer rate reach 10GBIT/S

2. Multi-style connecting modes:straight dual etherne port, 90 degree, PCB type and pin header type available

3. Applicable for harsh environments.

4. Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.

5. Sheath of cable applicable for common RJ45 plugs.

6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.

7. Electroplated shell against wind and rain.

8. Shielding system with high frequency noise immunity and electromagnetic interference protection.

Materials
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel

FAQ

1. Q: What if I need the products have some differences on specification from yours?
A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.

2. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.

3. Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

4. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
